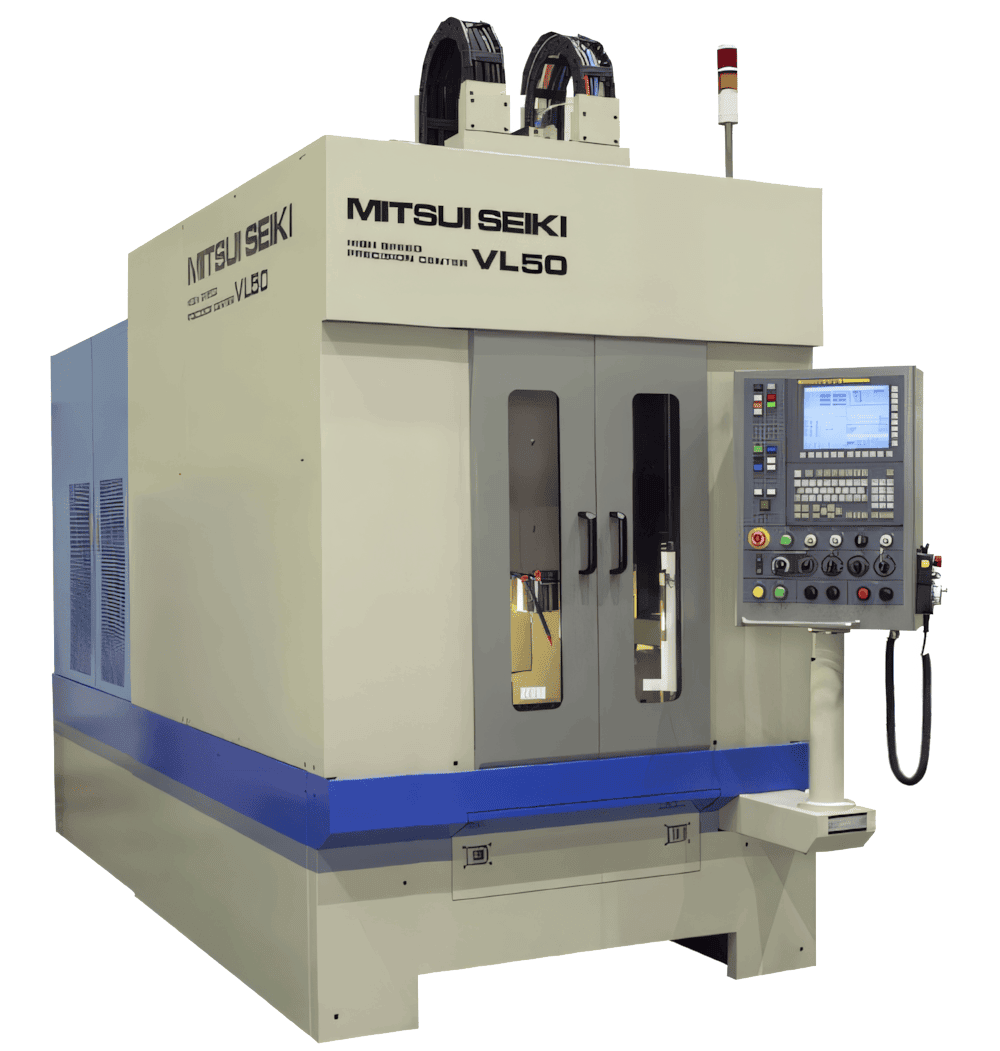

VL50 With Fanuc 31i-B5 with Panel iH Pro

  • Linear motor axis drives
  • Hand scraped components ensures geometric accuracy
  • High speed ultra-precision contouring
  • Suitable for metalic & graphite materials
  • Exceptional surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The legacy 5-axis VL50 has demonstrated it capability to discerning business owners wanting to improve their capabilities in the mold & die, and precision components industries. The reliable, repeatable precision allows for profitable production of some of the world's most demanding applications.
Working Capacity Spindle Axis Speed Precision Automation Footprint
X axis longitudinal stroke (head traverse):
400 mm (15.75")
Y axis cross stroke (column traverse):
300 mm (11.8")
Z axis vertical stroke (spindle head):
200 mm (7.87")
Distance from table top to spindle nose:
100-300 mm (3.94"-11.81")

Table

Working surface:
500 X 400 mm (19.7 x 15.7")
Max permissible load:
400 kg (880lbs)
Height from floor to table top:
800 mm (31.5")
Speed
50,000RPM (opt. 32,000RPM; opt. 25,000RPM)
Taper
HSK-E25 (opt. HSK-E32; opt. HSK-E40)
Power (max.)
AC 5.5 kW (7.37HP) (opt. 4.1 kW; opt. 3.7 kW)
Torque (max.)
1.31 Nm (0.97 ft-lbs.) (opt.

Rapid traverse

X, Y and Z axis:
40,000 mm/min (1,575 ipm)

Cutting feed

X, Y and Z axis:
0.1 - 40,000 mm/min (0.004 ~ 1,575 ipm)

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
Tool Changer Capacity
24ATC (opt. 12; 60; 90) (Extended robot capacity)
Work Handling
Manual 0-point; Robot Loader; FMS
Length:
3,250 mm (128")
Width:
1,550 mm (61")
Machine Weight:
5,800 kgs (12,760 lbs)

Similar Machines

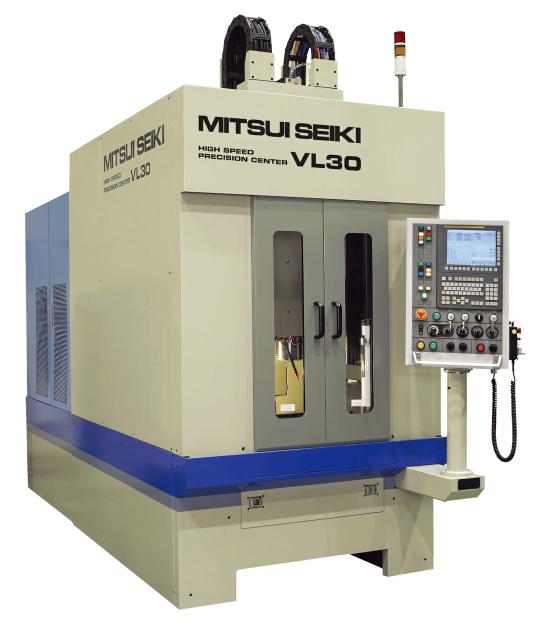

VL30
