Vertex 100X With Fanuc 31i-B5 with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance rotary torque motor drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • High speed ultra-precision contouring
  • Suitable for a wide variety of materials
  • Exceptional surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The newest addition to the Vertex family of machining centers is the 5-axis Vertex 100X. It has demonstrated it's capability to deliver exceptional performance & profitability for the aerospace turbine OEM's and their supply chains. The machine is also well well regarded in industries producing ultra high precision optics, housings, and energy components.
Working Capacity Spindle Axis Speed Precision Automation Footprint
X axis longitudinal stroke (head traverse):
1,000 mm (39.37")
Y axis cross stroke (column traverse):
1,000 mm (39.37")
Z axis vertical stroke (spindle):
750 mm (29.52")
A axis (tilt):
120 deg. (+15 ~ -105 degrees)
C axis (rotary):
Infinite 360,000 positions
Distance from table top to spindle nose:
300 mm to 1,050 mm (11.81" to 41.33")

Table

Working surface:
485mm Ø (19.09" Ø)
Maximum work piece swing
1250 mm Ø X 850 mm (49.21" Ø X 33.46")
Max permissible load:
600 kg. (1,320 lb.)
Height from floor to table top:
1045 mm (41.14")
Speed
12,000RPM (opt. 15,000RPM; opt. 25,000RPM; opt. 30,000RPM)
Taper
HSK-A100 (opt. HSK-A63)
Power (max.)
AC 37 kW (50HP) (opt. 33kW; opt.18.5kW)
Torque (max.)
326 Nm (240 ft-lbs.) (opt. 131 Nm; opt. 55 Nm)

Rapid traverse

X, Y and Z axis:
48,000 mm / min (1,890 IPM)
A axis (tilting):
100 RPM
C axis (rotary):
100 RPM

Cutting feed

X, Y and Z axis:
0.1~48,000 mm / min (0.004 ~ 1,890 IPM)
A axis (tilting): 18,000 deg. /min (50 RPM)
0 ~ 100 RPM
C axis (rotary): 36,000 deg. /min (100 RPM)
0 ~ 100 RPM

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A and C axis:
± 3 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A and C axis:
± 3 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
A and C axis:
Absolute Rotary Inductosyn Scale
Tool Changer Capacity
40ATC (opt. 60; 130) (Extended robot capacity)
Work Handling
Manual 0-point; Robot Loader; FMS
Length:
4,330 mm (171")
Width:
3,000 mm (119")
Machine Weight:
20,000 kgs (44,150lbs)

Similar Machines

Vertex 75 III

Vertex 75X III-DD

The latest 5-axis Vertex 55X III-DD has demonstrated it capability to deliver exceptional performance & profitability for the aerospace turbine OEM's and their supply chains.

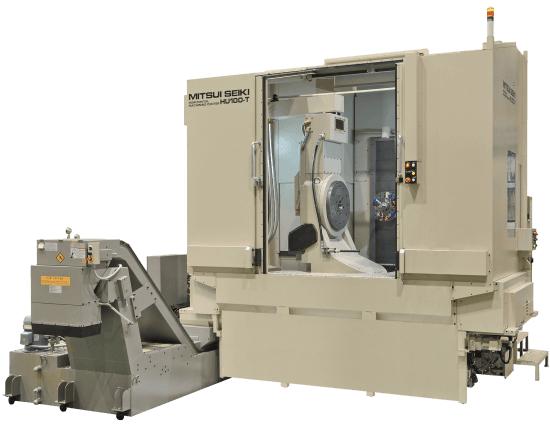

HU100-T
