HU100-T - Mitsui Seiki

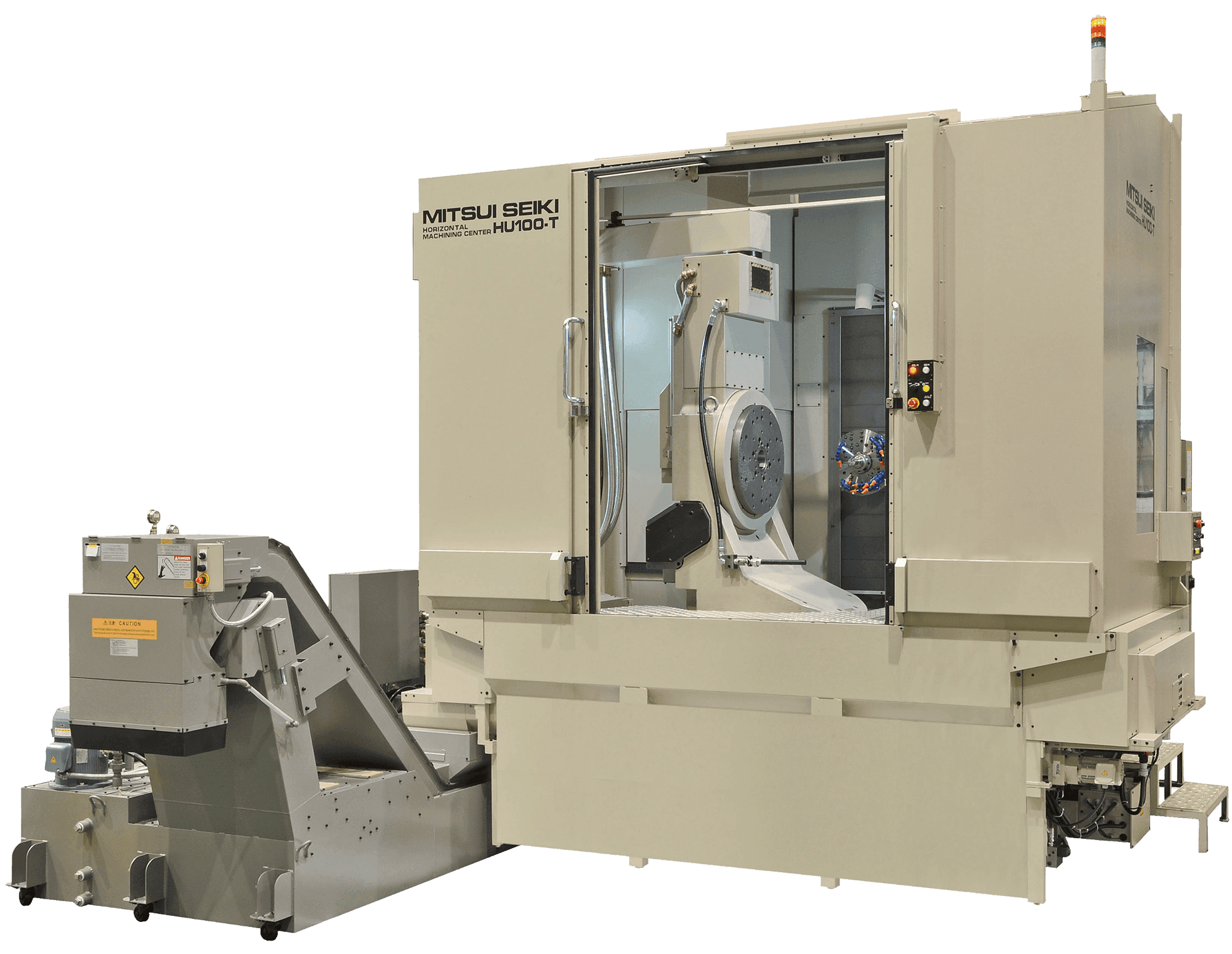

HU100-T With FANUC 30i-B-Plus with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Hardened & ground steel box ways
  • Hybrid slideway for enhanced acc/dec
  • World leading accuracy for complex contouring in roughing & HS Point Milling
  • Suitable for a wide variety of high temperature materials
  • Exceptional roughing & fine surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The HU100-T is a long standing Mitsui Seiki legacy 5-axis horizontal spindle machining center. Our HU style machines continue to demonstrate capability to deliver exceptional performance & profitability for a wide variety of industry aero engine and power generation OEM's and their supply chains. Due to the machine kinematics, it often possible to machine both leading & trailing edge blisk features in a single set up using high perfoemance flank milling, and / or high speed point milling strategies.
Working Capacity Spindle Axis Speed Precision Automation Footprint (min.)
X axis Table longitudinal stroke:
1,300 mm (51.18")
Y axis Spindle head vertical stroke:
1,000 mm (39.36")
Z axis Column longitudinal stroke:
1,000 mm (39.36")
B axis (rotary):
0.001 deg. infinite (-90 deg. ~ 180 deg. stroke)
C axis (rotary):
0.001 deg. infinite
Distance from C-axis table face to spindle nose (B=0deg)
276.2 - 1,276.2 mm (10.87" - 50.24")

Table (Pallet)

Working surface:
600 mm Ø (23.62" Ø)
Maximum work piece swing
1,220 mm Ø (48" Ø)
Max. work height:
700 mm (27.55")
Max permissible load:
600 kg. (1,325 lb.)
Speed
6,000RPM (opt. 10,000 RPM gear, 12,000RPM direct, 15000 direct)
Taper
HSK-A100 (opt. 50 Taper)
Power (max.)
AC 37 / 30 kW (50 / 40 HP) (6000 RPM)
Torque (max.)
3331 Nm (2456 ft-lbs) (6000 RPM)

Rapid traverse

X, Y and Z axis:
20,000 mm/min (787 IPM)
B and C axes (rotary):
3,600 deg. / min (10 RPM)

Cutting feed

X, Y and Z axis:
0.1 - 10,000 mm / min (0.004 - 394 IPM)
B and C axes (rotary):
0.1 ~ 3,600 deg. / min (10 RPM)

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 003mm/full travel (+/- 00012"/full travel)
B axis (rotary):
± 4 arc sec.
C axis (rotary):
± 8 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
B axis (rotary):
± 1.5 arc sec.
C axis (rotary):
± 4 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
B and C axes (rotary):
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
4-APC; (opt. 8/10/12 Pallet Pool, Robot Loader; FMS)
Length:
5,826 mm (230") (90ATC; w/o APC)
Width:
4,310 mm (170")
Machine Weight:
18,000 kg. (39,700 lbs)

Similar Machines

Vertex 100X

Vertex 100X

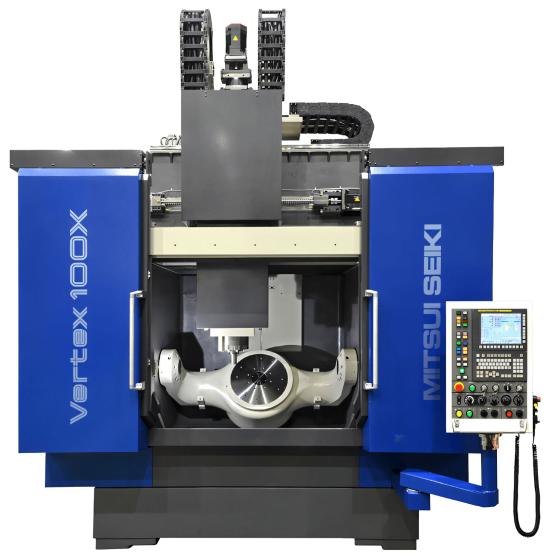

The newest addition to the Vertex family of machining centers is the 5-axis Vertex 100X. It has demonstrated it's capability to deliver exceptional performance & profitability for the aerospace turbine OEM's and their supply chains. The machine is al...
