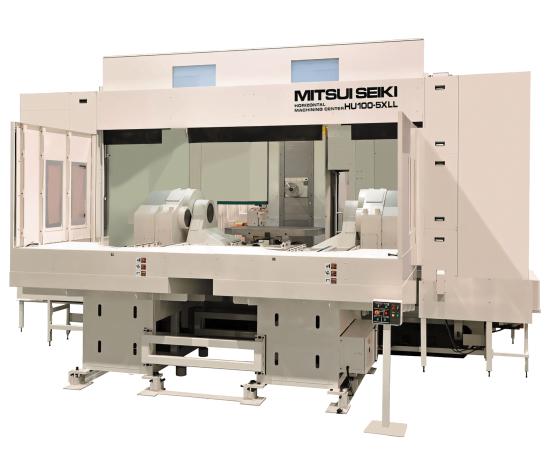

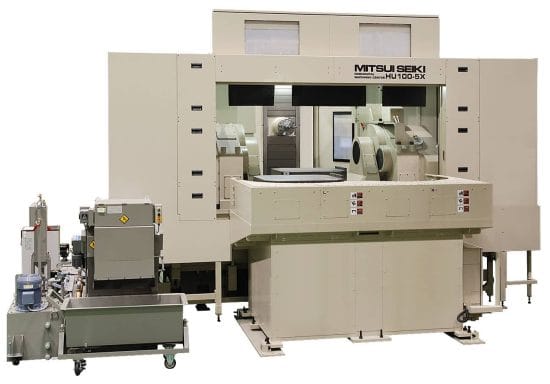

X axis Table longitudinal stroke:
2000 mm (78.74")
Y axis Spindle head vertical stroke:
1500 mm (59.05") (Opt. 1750mm)
Z axis Column longitudinal stroke:
1400 mm (55.11") (Opt.1600mm; 1800mm)
A axis (tilt):
100 deg. (+5 deg. to -95 deg.) (Option: 130 deg. +20 deg. to -110 deg.)
B axis (rotary):
Infinite 360,000 positions
Distance from table center to spindle nose (A-axis Horizontal)
200 ~ 1600 mm (7.87" ~ 62.99") (basic Z-axis)
Table (Pallet)
Working surface:
1,000mm square (39.4") (Opt. larger square, rectangle, round pallets)
Maximum work piece swing
2000 mm Ø (78.74" Ø)
Max permissible load:
2,000 kg (4,400 lb.) (Opt. 3,000 kg, 5000 kg)
Height from floor to table top:
1,900 mm (74.8")
