HU100-5XM With Fanuc 30i-B with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Hardened & ground steel box ways
  • Suitable for a wide variety of materials
  • Exceptional roughing & fine surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

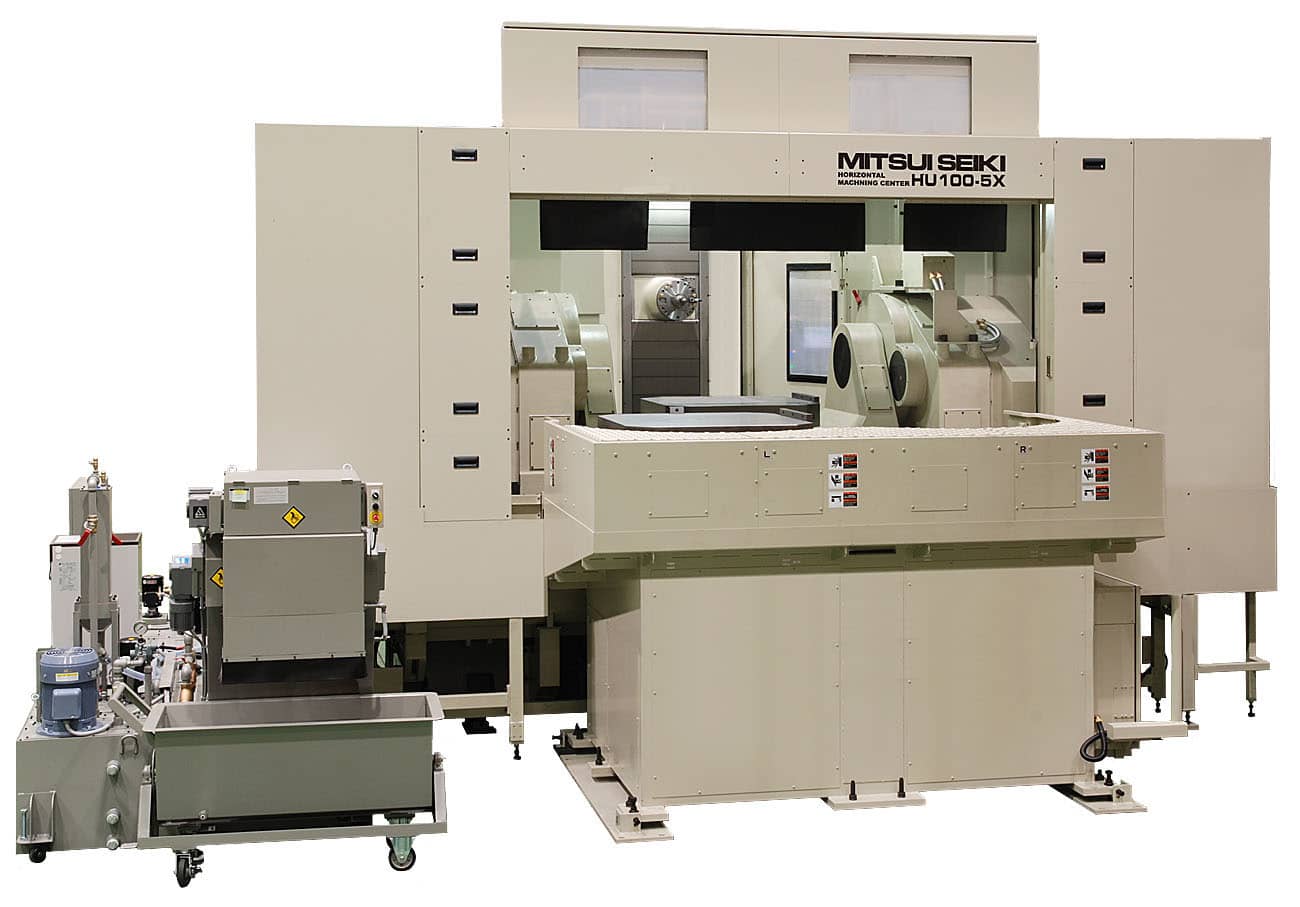

The HU100-5XM is a Mitsui Seiki legacy 5-axis machining center. Our HU100-5X line of larger trunnion style machines have all demonstrated capability to deliver exceptional hard metal performance & profitability for the aerospace OEM's and their supply chains, as well as energy, mold & die, semi conductor, and general ultra precision machining. The machine is also well well regarded in industries producing ultra high precision optics, housings, and space components.
Working Capacity Spindle Axis Speed Precision Automation Footprint (min.)
X axis Table longitudinal stroke:
1,500 mm (59.05")
Y axis Spindle head vertical stroke:
1,200 mm (47.24") (Opt. 1500mm)
Z axis Column longitudinal stroke:
1,200 mm (47.24") (Opt. 1400mm; 1600mm; 1800mm)
A axis (tilt):
100 deg. (+5 deg. to -95 deg.) (Option: 130 deg. +20 deg. to -110 deg.)
B axis (rotary):
Infinite 360,000 positions
Distance from table center to spindle nose (A-axis Horizontal)
200 ~ 1200 mm (7.87" ~ 47.24") (basic Z-axis)

Table (Pallet)

Working surface:
1,000mm square (39.4")
Maximum work piece swing
1,500 mm Ø (59.05" Ø) X 1200 mm high
Max permissible load:
2,000 kg (4,400 lb.) (Opt. 3,000 kg)
Height from floor to table top:
1,900 mm (74.8")
Speed
4,500RPM (opt. gear drive 6,000, 10,000; Direct drive 12,000, 15,000RPM)
Taper
HSK-A100 (opt. 50 Taper, HSK A150, KM-4X)
Power (max.)
AC 37 / 30 kW (50 / 40 HP) (6000 rpm)
Torque (max.)
3331 Nm / 2701 Nm (2456 ft-lbs / 1992 ft-lbs) (6000 RPM)

Rapid traverse

X, Y and Z axis:
12,000 mm/min (472 ipm)
A axis (tilting):
4 RPM
C axis (rotary):
6 RPM

Cutting feed

X, Y and Z axis:
0.1 - 10,000 mm/min (0.004 - 394 ipm)
A axis (tilting):
0.1 ~ 1440 deg. / min
C axis (rotary):
0.1 ~ 2160 deg. / min

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 003mm/full travel (+/- 00011"/full travel)
A axis:
± 8 arc sec.
B axis:
± 3 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A axis:
± 4 arc sec.
B axis:
± 1.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
A and B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 8/10/12 Pallet Pool, Robot Loader; FMS)
Length:
8,314 mm (328")
Width:
8,000 mm (315")
Machine Weight:
35,000kgs (77,160 lbs)
