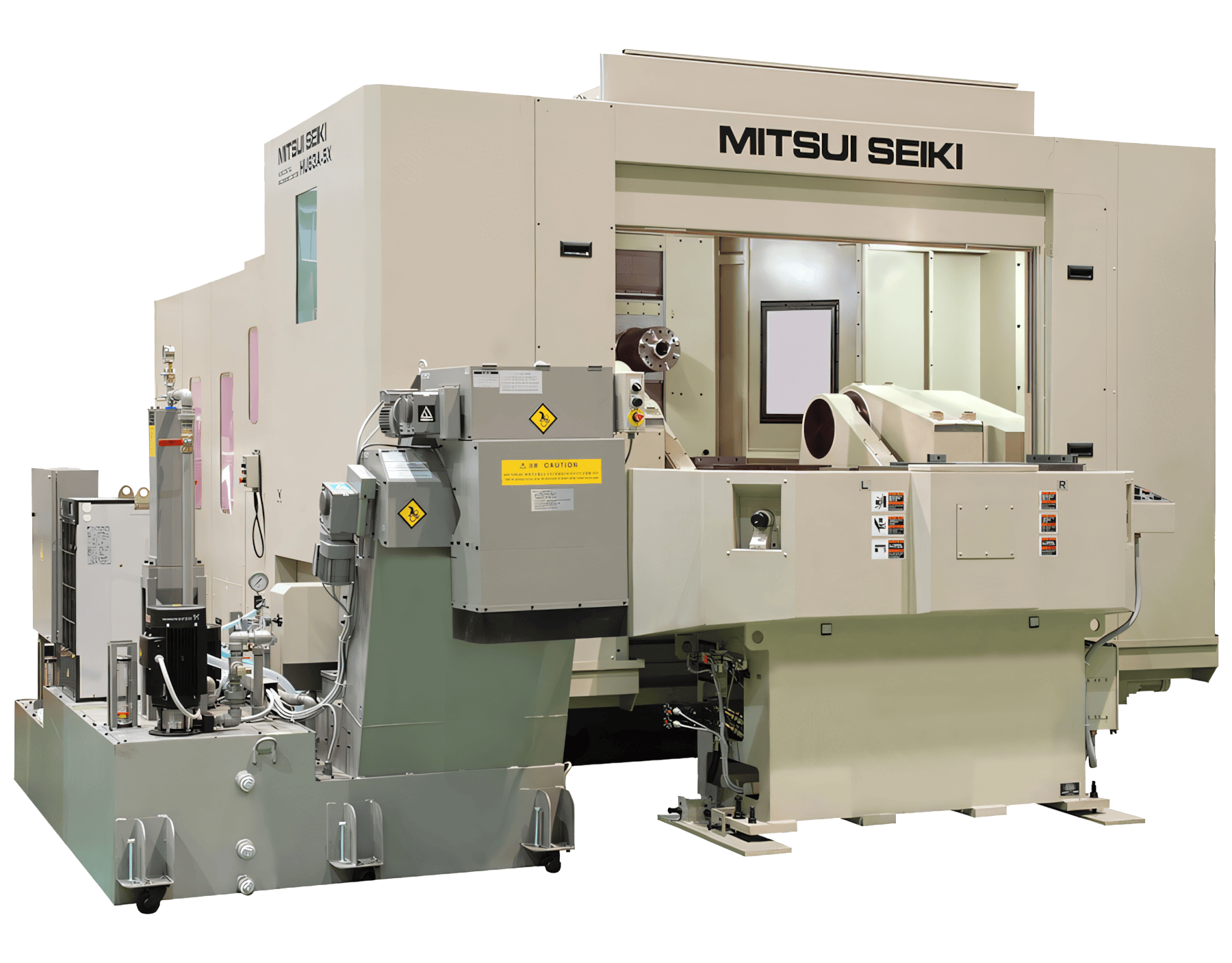

HU63A-5X With Fanuc 30i-B with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Suitable for a wide variety of materials
  • Exceptional roughing & fine surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The HU63A-5X is a Mitsui Seiki legacy 5-axis machining center. It has demonstrated it's capability to deliver exceptional performance & profitability for the aerospace OEM's and their supply chains as well as mold & die, semi conductor, and general ultra precision machining. The machine is also well well regarded in industries producing ultra high precision optics, housings, and energy components.
Working Capacity Spindle Axis Speed Precision Automation Footprint
X axis Table longitudinal stroke:
900 mm (35.43")
Y axis Spindle head vertical stroke:
900 mm (35.43")
Z axis Column longitudinal stroke:
900 mm (35.43")
A axis (tilt):
100 deg. (+5 deg. to -95 deg.) (Option: 130 deg. +20 deg. to -110 deg.)
B axis (rotary):
Infinite 360,000 positions
Distance from table center to spindle nose (A-axis Horizonal
150 - 1050 mm (5.90" - 41.34")

Table (Pallet)

Working surface:
630mm square (24.8")
Maximum work piece swing
950 mm Ø X 900 mm high (37.4" Ø X 35.43" high)
Max permissible load:
1,200 kg (2,645 lb.)
Height from floor to table top:
1,480 mm (58.26")
Speed
6,000RPM (opt. 8,000, 12,000, 15,000RPM)
Taper
HSK-A100 (opt. 50 Taper)
Power (max.)
AC 26 kW (35HP) (Opt. 30kW)
Torque (max.)
1,081 Nm (800 ft-lbs.) (Opt. 420 Nm)

Rapid traverse

X axis:
12,000 mm / min (473 ipm)
Y and Z axis:
24,000 mm / min (945 IPM)
A axis (tilting):
6 RPM
C axis (rotary):
10 RPM

Cutting feed

X, Y and Z axis:
0.1 - 10,000 mm/min (0.004 - 394 ipm)
A axis (tilting):
0.1 ~ 2,160 deg. / min
B axis (rotary):
0.1 ~ 3,600 deg. / min

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A axis:
± 8 arc sec.
B axis:
± 3 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A axis:
± 4 arc sec.
B axis:
± 1.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
A and B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 8/10/12 Pallet Pool, Robot Loader; FMS)
Length:
5,700 mm (225")
Width:
4,700 mm (185")
Machine Weight:
26,000 kgs (57,320lbs)

Similar Machines

Vertex 75 III

Vertex 75X III

The latest 5-axis Vertex 75X III has demonstrated it capability to discerning business owners wanting to improve their capabilities in the aerospace, mold & die, healthcare, and precision industries. The reliable, repeatable precision allows for profitable production of some of the world's most demanding applications.
HU63-T

HU63-T

High Production Machining Center Model HU63T with 600 mm diameter pallets.Numerically controlled with all standard equipment and features including: Automatic Tool Changer, and high production capability for drilling, boring, tapping, and reaming. Integrated circuit logic, closed loop, complete with electrical equipment for operation on: 3-phases, 60Hz, 200/220 Volts AC.
