PJ303X With Fanuc 31i-B5 with Panel iH Pro

  • Linear motor and rotary torque motor axis drives
  • Hand scraped components ensures geometric accuracy
  • High speed ultra-precision contouring
  • Micron & Sub-Micron milling capability
  • Exceptional surface finishing in hard materials
  • Micro Machining, Hale Machining, Nano Machining
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The 5-axis PJ303X was recently created to satisfy the discerning business owners looking to further differentiate themselves from the general machining competition. The reliable, repeatable precision allows for profitable production of some of the world's most demanding applications.
Working Capacity Spindle Axis Speed Precision Automation Footprint
X axis longitudinal stroke (table saddle traverse):
300 mm (11.81")
Y axis cross stroke (head traverse):
325 mm (12.80")
Z axis vertical stroke (spindle):
200 mm (7.87")
A axis (tilt):
150 deg. (+40 deg. ~ -110 deg.)
C axis (rotary):
Infinite 3,600,000 positions
Distance from table top to spindle nose:
100-300 mm (3.94"-11.81")
Distance from table surface to A axis centerline:
50 mm (1.97")

Table

Working surface:
180 mm (7.09") Ø
Maximum work piece swing:
280 mm (11.02") Ø x 230 mm (9.06")
Max permissible load:
20 kg. (44 lb.)
Height from floor to table top:
900 mm (35.43")
Speed
50,000RPM (opt. 40,000)
Taper
HSK-E25 (opt. HSK-E32)
Power (max.)
AC 5.5 (7.37 HP)
Torque (max.)
1.31 Nm (0.97 ft-lbs.)
Rapid traverse X, Y and Z axis:
20,000 mm/min (787 ipm)
A axis (tilting):
18,000 deg. /min (50 RPM)
C axis (rotary):
36,000 deg. /min (100 RPM) (opt. 500 RPM)

Cutting feed

X, Y and Z axis:
0.1~ 10,000 mm/min (0.004 ~ 394 ipm)
A axis (tilting): 18,000 deg. /min (50 RPM)
18,000 deg. /min (50 RPM)
C axis (rotary): 36,000 deg. /min (100 RPM)
36,000 deg. /min (100 RPM)

Positioning Accuracy (JIS):

X, Y and Z axis:
±0.0005 mm / full travel (0.00002" / full travel)
A and C axis:
± 1 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
± 0.0005 mm / full travel (0.00002" / full travel)
A and C axis:
± 0.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
A and C axis:
Absolute Rotary Inductosyn Scale
Tool Changer Capacity
12ATC (opt. 24) (Extended robot capacity)
Work Handling
Manual 0-point; Robot Loader; FMS
Length:
2,375 mm (94")
Width:
1,755 mm (70")
Machine Weight:
5,500kgs (12,140 lbs)

Similar Machines

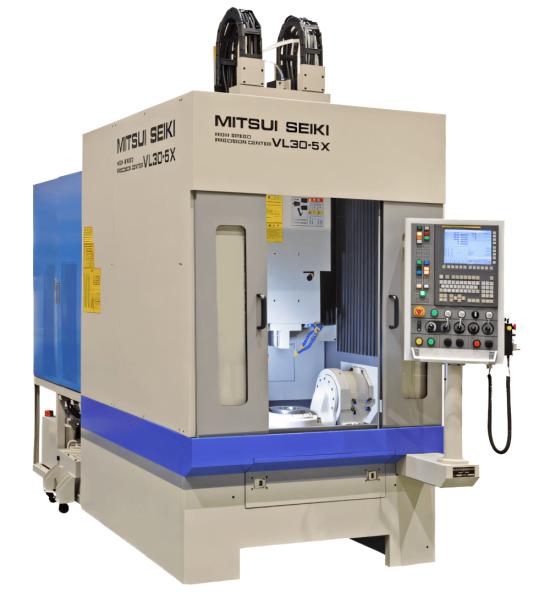

VL30-5X
