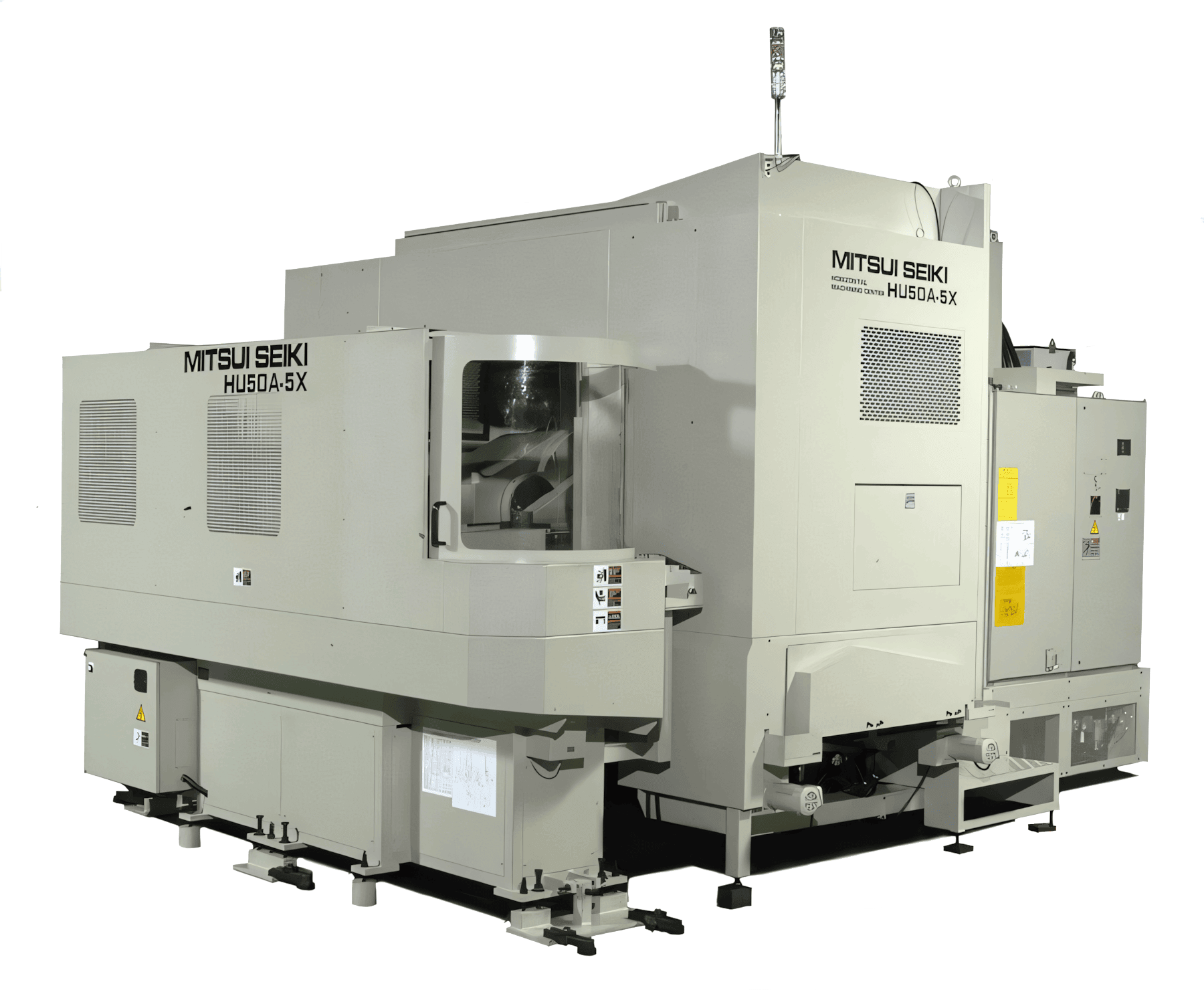

HU50A-5X With Fanuc 30i-B with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Hardened & ground steel box ways
  • Suitable for a wide variety of materials
  • Exceptional surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The HU50A-5X is a Mitsui Seiki legacy 5-axis machining center. It has demonstrated it's capability to deliver exceptional performance & profitability for the aerospace OEM's and their supply chains as well as mold & die, semi conductor, and general ultra precision machining. The machine is also well well regarded in industries producing ultra high precision optics, housings, and energy components.
Working Capacity Spindle Axis Speed Precision Automation Footprint (min.)
X axis Table longitudinal stroke:
720 mm (28.34")
Y axis Spindle head vertical stroke:
850 mm (33.46")
Z axis Column longitudinal stroke:
850 mm (33.46")
A axis (tilt):
100 deg. (+5 deg. to -95 deg.) (Option: 130 deg. +20 deg. to -110 deg.)
B axis (rotary):
Infinite 360,000 positions
Distance from table center to spindle nose (A-axis Horizonal
150 - 1000 mm (5.90" - 39.37")
Speed
12,000RPM (opt. 15,000RPM)
Taper
HSK-A100 (opt. 50 Taper)
Power (max.)
AC 30 kW (40HP)
Torque (max.)
420 Nm (310 ft-lbs.)

Rapid traverse

X, Y and Z axis:
24,000 mm / min (945 IPM)
A axis (tilting):
6 RPM
C axis (rotary):
11.1 RPM

Cutting feed

X, Y and Z axis:
0.1~20,000 mm / min (0.004 ~ 788 IPM)
A axis (tilting):
0.1 ~ 1,440 deg. / min
B axis (rotary):
0.1 ~ 4,000 deg. / min

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A axis:
± 8 arc sec.
B axis:
± 3 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A axis:
± 4 arc sec.
B axis:
± 1.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
A and B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 8/10/12 Pallet Pool, Robot Loader; FMS)
Length:
5,690 mm (225")
Width:
4,554 mm (180")
Machine Weight:
18,000 kgs (39,735lbs)
