J1230 - Mitsui Seiki

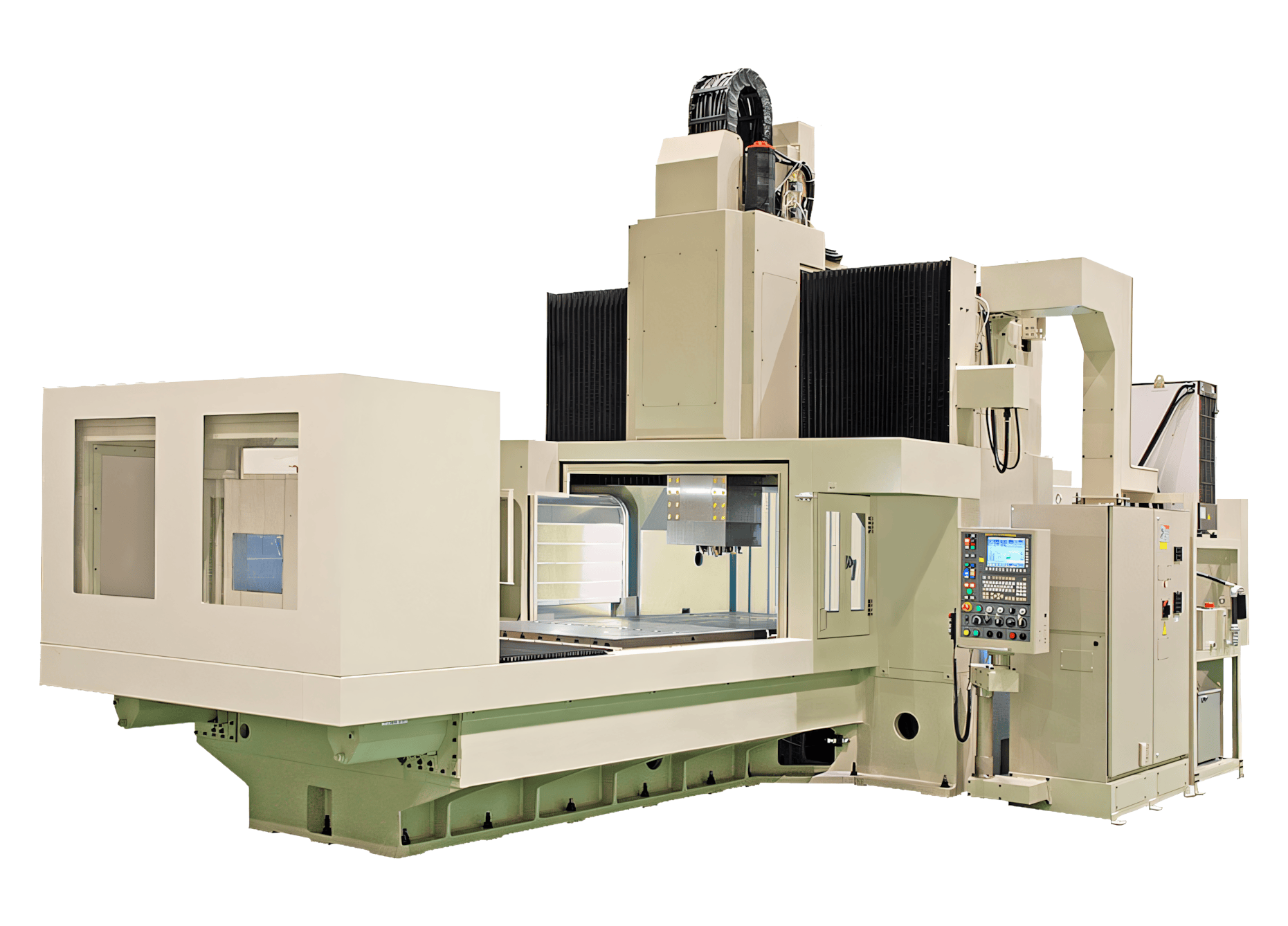

J1230 With FANUC 31i-B-Plus with Panel iH Pro

  • Designed and built for accuracy from the bed casting, slideway construction to hand scraping:
  • - 3-point bed construction
  • - Highly rigid bed and column casting
  • - Hand scraped way mounting surfaces
  • - Ultra precise hardened & ground slideways
  • Suite of options available for automated precision boring & milling such as full machine enclosure, ATC, full cutting coolant & chip evacuation systems, spindle probe and tool setter
  • Exceptional long term precsiion in a wide variety of materials
  • Environmentally concious design & manufacture
Inquire Now

Specifications and Standard Features

The J1230 Jig Mill adds serious milling, drilling, and tapping capability while providing critical precision & functionality to discerning business owners wanting to improve their through put capabilities in the mold & die, aero space, healthcare, and precision industries. This machine significantly increases work capacity from the traditional large Jig Borer style machine. The reliable, ultra-repeatable accuracy allows for profitable production of some of the world's most demanding applications.
Working Capacity Spindle Axis Speed Precision Automation Footprint
X axis longitudinal stroke (table traverse):
3,000 mm (118.11")
Y axis cross stroke (spindle head traverse):
1,250 mm (49.21")
Z axis vertical stroke (ram):
500 mm (19.68")
Distance between columns:
1,750 mm (68.89")
Distance from table top to spindle nose:
350 ~ 850 mm (13.77" ~ 33.46")

Table

Table size:
3,400 x 1,250 mm (133.86" x 49.21")
Working surface :
3,000 x 1,250 mm (118.11" x 49.21")
Max permissible load:
4,000 kg. (8,800 lb.)
Spindle speed:
12,000RPM (opt. 3200RPM w/ quill)
Taper
50 Taper (option HSK-A100)
Power (max.)
AC 30 / 25 kW (40HP)
Torque (10 min / cont)
350 / 239 Nm (258 / 176 ft-lbs)

Rapid traverse

X, Y and Z axis:
12,000 mm/min (473 IPM)

Cutting feed

X, Y and Z axis:
0.1~5,000 mm/min (0.004~197 IPM)

Positioning Accuracy (JIS):

X, Y and Z axis full stroke:
± 0.003 mm (0.000012")

Repeating accuracy (JIS):

X, Y and Z axis full stroke:
± 0.001 mm (0.00004")
Set Up & Measurement
Various probing & in-process measuring options
Tool Changer Capacity
Option: 20/60/120/180/240ATC; Tool Robot System
Work Handling
Manual 0-point; Robot / Crane Loader
Length:
8,900 mm (351") (w/o guarding, ATC or coolant system)
Width:
5,940 mm (234") (w/o guarding, ATC or coolant system)
Machine Weight:
35,000 kgs (77,160 lbs)
