HU100 - Mitsui Seiki

HU100 With FANUC 30i-B-Plus with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Hardened & ground steel box ways
  • World leading accuracy for fine boring & turn boring
  • Suitable for a wide variety of materials
  • Exceptional roughing & fine surface finishing in hard materials
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The HU100 is a long standing Mitsui Seiki legacy 4-axis machining center. Our HU style machines continue to demonstrate capability to deliver exceptional performance & profitability for a wide variety of industry OEM's and their supply chains including mold & die, semi conductor, automotive aerospace and general ultra precision machining.
Working Capacity Spindle Axis Speed Precision Automation Footprint (min.)
X axis Table longitudinal stroke:
1,300 mm (51.18") (Opt. 1600mm; 2000mm)
Y axis Spindle head vertical stroke:
1,000 mm (39.36") (Opt. 1200mm, 1500mm; 1750mm)
Z axis Column longitudinal stroke:
1,000 mm (39.36") (Opt. 1200mm, 1400mm; 1600mm; 1800mm)
B axis (rotary):
Infinite 360,000 positions
Distance from table center to spindle nose (std stroke)
150 - 1,050 mm (5.90" - 41.33")

Table (Pallet)

Working surface:
1,000mm square (39.36")
Maximum work piece swing
1,500 mm Ø (59.05" Ø)
Max permissible load:
2,000 kg (4,400 lb.) (Opt. 3,000 kg, 5000 kg)
Height from floor to table top:
1,500 mm (59.5")
Speed
4,500RPM (opt. gear drive 6,000, 10,000; Direct drive 12,000, 15,000RPM)
Taper
HSK-A100 (opt. 50 Taper, KM-4X)
Power (max.)
AC 37 / 30 kW (50 / 40 HP) (6000 rpm)
Torque (max.)
3331 Nm / 2701 Nm (2456 ft-lbs / 1992 ft-lbs) (6000 RPM)

Rapid traverse

X, Y and Z axis:
20,000 mm / min (787 IPM)
B axis (rotary):
5.5 RPM

Cutting feed

X, Y and Z axis:
0.1 - 10,000 mm/min (0.004 - 394 ipm)
B axis (rotary):
0.1 - 1,980 deg. / min

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 003mm/full travel (+/- 00012"/full travel)
B axis:
± 4 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
B axis:
± 1.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 8/10/12 Pallet Pool, Robot Loader; FMS)
Length:
7,069 mm (279")
Width:
5,100 mm (201")
Machine Weight:
32,000kgs (70,400 lbs.)

Similar Machines

HU100-TS

HU100-TS

The HU100-TS is a Mitsui Seiki legacy 5-axis Tilt Spindle machining center. Our HU100 line of larger 5-axis machines have all demonstrated capability to deliver exceptional hard metal performance & profitability for the aerospace OEM's and their supp...
HU100-5X

HU100-5X

The HU100-5X is a Mitsui Seiki legacy 5-axis machining center. Our HU-5X trunnion style machines have all demonstrated capability to deliver exceptional performance & profitability for the aerospace OEM's and their supply chains, as well as energy, ...

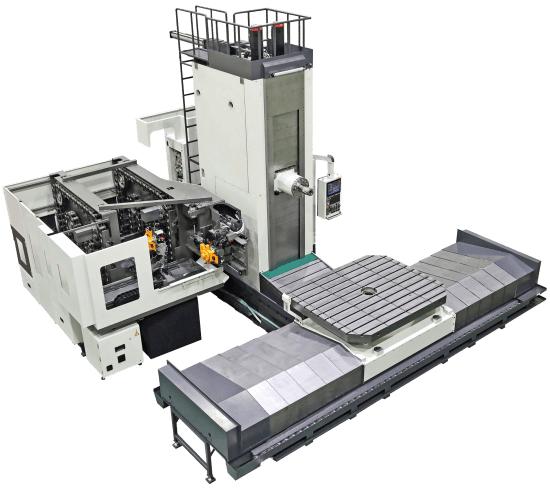

HPX150
