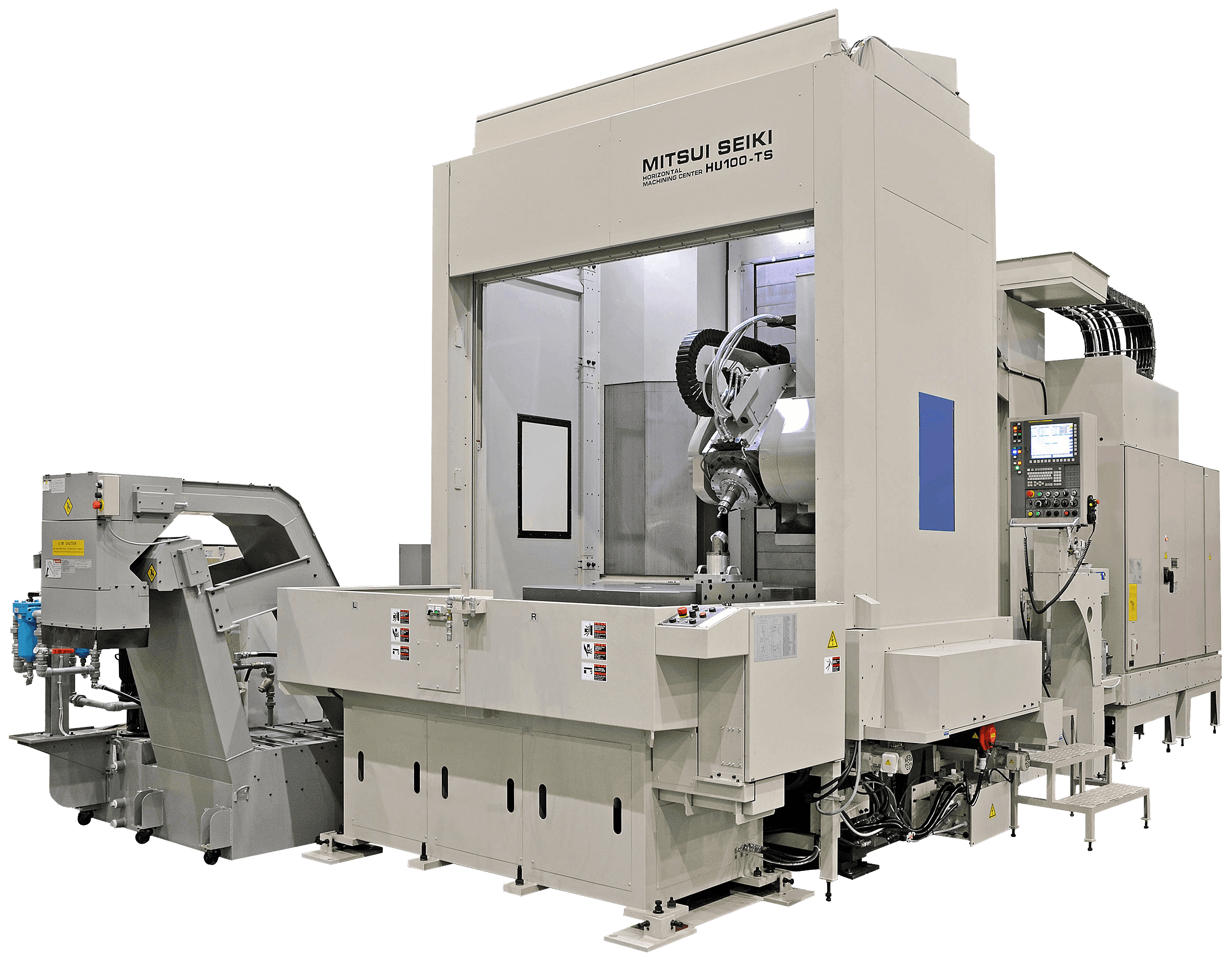

HU100-TS-HD With Fanuc 30i-B with Panel iH Pro

  • Ultra Precision ball screw linear axis drives
  • High Performance gear drives for rotary axes
  • Hand scraped components ensures geometric accuracy
  • Hardened & ground steel box ways
  • High power - High torque spindle for hard metal applications
  • Suitable for a wide variety of materials
  • Exceptional heavy roughing & fine surface finishing in hard materials
  • Unbeatable precision for critical tolerance parts.
  • Environmentally concious design & manufacture
  • Various Factory Automation and Integration solutions
Inquire Now

Specifications and Standard Features

The HU100-TS-HD is the newer heavy duty version of Mitsui Seiki's legacy 5-axis Tilt Spindle machining center. Our HU100 line of larger 5-axis machines have all demonstrated capability to deliver exceptional hard metal performance & profitability for the aerospace OEM's and their supply chains, as well as energy, mold & die, semi conductor, and general ultra precision machining. The machine is also well well regarded in industries producing aer structure parts, high precision housings, and space components. It is classified as one of the world's most precise 5-axis tilt spindle machines but now with serious power & torque.
Working Capacity Spindle Axis Speed Precision Automation Footprint (min.)
X axis Table longitudinal stroke:
1,300 mm (51.18") (Opt. 1500 mm, 1600mm, 2000mm)
Y axis Spindle head vertical stroke:
1,500 mm (59.05") (Opt. 1750mm)
Z axis Column longitudinal stroke:
1400 mm (55.11") (Opt.1600mm; 1800mm)
A axis (tilt):
150 deg. (-30 deg. to +120 deg.)
B axis (rotary):
Infinite 360,000 positions
Distance from table center to spindle nose (A-axis Horizontal)
-300 to 1100 mm (-11.81" to 43.30")

Table (Pallet)

Working surface:
1,000mm square (39.4")
Maximum work piece swing
1,500 mm Ø (59.05" Ø)
Max permissible load:
2,000 kg (4,400 lb.) (Opt. 3,000 kg, 5000 kg, 8000 kg)
Height from floor to table top:
1,540 mm (60.62")
Speed
6,000 RPM Spindle (Direct Drive)
Taper
HSK-A100
Power (max.)
159 kW/ 100 kW (213 HP / 134 HP)
Torque (max.)
1508 Nm / 1005 Nm (1112 / 741 ft-lbs)

Rapid traverse

X, Y and Z axis:
15,000 mm/min (590 ipm)
A axis (tilting):
6 RPM
B axis (rotary):
10 RPM

Cutting feed

X, Y and Z axis:
0.1 - 10,000 mm/min (0.004 - 394 ipm)
A axis (tilting):
0.1 ~ 2,160 deg. / min
B axis (rotary):
0.1 ~ 3,600 deg./min deg. / min

Positioning Accuracy (JIS):

X, Y and Z axis:
+/- 003mm/full travel (+/- 00011"/full travel)
A axis:
± 6 arc sec.
B axis:
± 4 arc sec.

Repeating accuracy (JIS):

X, Y and Z axis:
+/- 001mm/full travel (+/- 00004"/full travel)
A axis:
± 3 arc sec.
B axis:
± 1.5 arc sec.

Axis Position Feedback

X, Y, Z axis:
Absolute Linear Glass Scale
A and B axis:
Absolute Rotary Scale Encoder
Tool Changer Capacity
60ATC (opt. 90 to 540) (Extended robot capacity)
Work Handling
2-APC; (opt. 8/10/12 Pallet Pool; FMS)
Length:
8,431 mm (332")
Width:
5.530 mm (218")
Machine Weight:
40,000 kgs (88,185 lbs) basic machine
