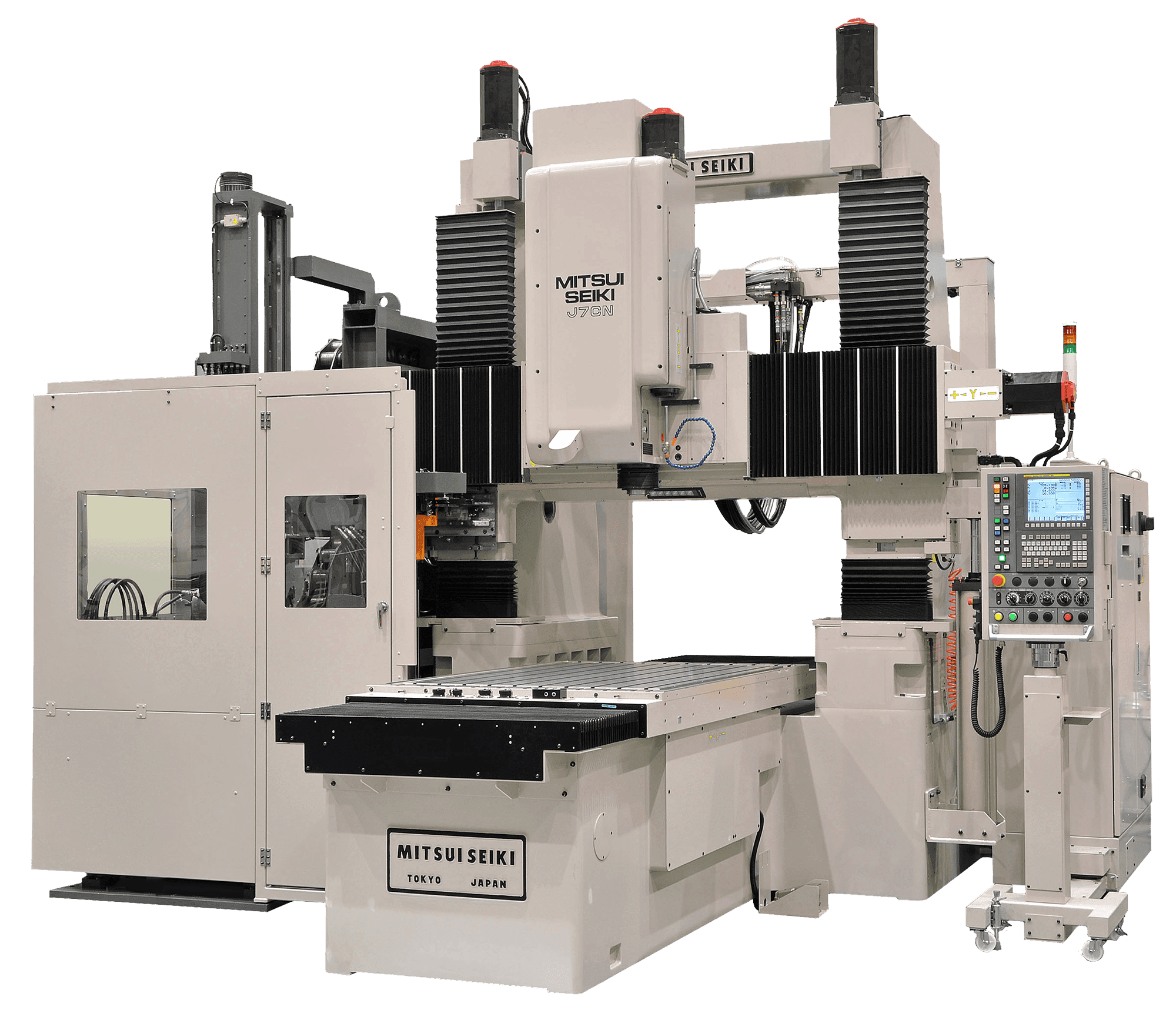

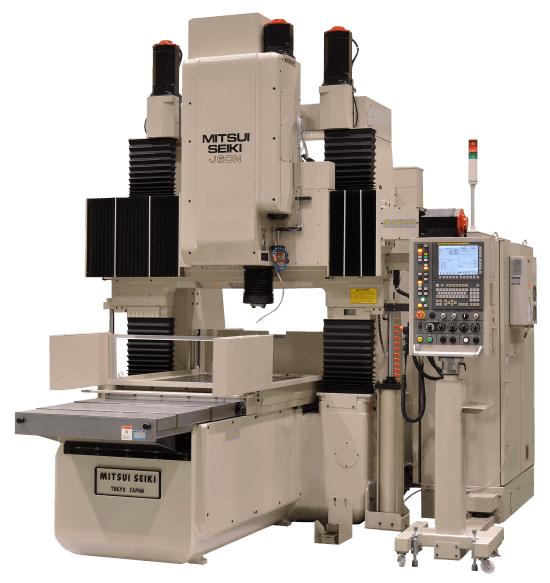

J7CN With FANUC 30i-B-Plus with Panel iH Pro

Designed and built for accuracy from the bed casting, slideway construction to hand scraping:
- 3-point bed construction
- Highly rigid bed and column casting
- V-F way employed on X-axis
- Hand scraped way surfaces
- Ultra precise needle roller bearings utilized on slideway surfaces
Suite of options available for automated precision boring such as full machine enclosure, ATC, spindle probe and tool setter
Exceptional long term precsiion in a wide variety of materials
Environmentally concious design & manufacture
Various Factory Automation and Integration solutions

Specifications and Standard Features

The latest J7CN Jig borer replaces its predessor 7CN-II and provides more critical precision & functionality to discerning business owners wanting to improve their capabilities in the mold & die, aero space, healthcare, and precision industries. The reliable, ultra-repeatable accuracy allows for profitable production of some of the world's most demanding applications.

X axis longitudinal stroke (table traverse):

1,530 mm (60.23")

Y axis cross stroke (saddle head traverse):

1,020 mm (40.15")

Z axis vertical stroke (quill):

300 mm (11.81")

W axis vertical stroke (cross rail):

920 mm (36.25")

Distance between columns:

1,600 mm (62.99")

Maximimum Distance from table top to spindle nose:

1225 mm (48.2")

Table

Working surface :

1,830 x 1,200 mm (72.04" x 47.24")

Max permissible load:

2,000 kg (4,400 lbs)

Quill diameter:

125 mm - 5" ,(145 mm - 5.7" at nose)

Spindle diameter

75 mm (3")

Spindle speed:

40~ 3200 RPM

Taper

ISO no. 45 NT (Cat 45 -opt) (opt. 50 Taper)

Power (max.)

AC 10 kW (7 hp)

Rapid traverse

X & Y- axis:

5,080 mm/min. (200 ipm)

W-axis (cross rail)

560 mm/min. (22 ipm)

Z axis (quill):

3050 mm/min (120 ipm)

Fine feed

X & Y- axis:

0.1 - 2000 mm/min (0.0039 – 78.7 IPM)

Z axis (quill):

0.1 - 2,000 mm/min. (0.004 ~ 80 ipm)

Positioning Accuracy (JIS):

X, Y and Z axis:

± 0.001 mm (0.00004")

Repeating accuracy (JIS):

X, Y and Z axis:

± 0.0005 mm (0.00002")

Set Up & Measurement

Various probing & in-process measuring options

Tool Changer Capacity

Option: 20ATC; 60ATC

Work Handling

Manual 0-point; Robot Loader

Length:

7,400 mm (290") (w/o guarding, ATC or coolant system)

Width:

5,730 mm (225") (w/o guarding, ATC or coolant system)

Machine Weight:

14,000 kg (30,800 lb.)
